The Switch-Pros - 8 Switch Panel Power System is a premium switch panel power system designed to streamline the control of your vehicle's accessories. With Bluetooth connectivity. RGB backlighting. and a compact relay-free design. it's the perfect solution for off-road. race. and utility vehicles needing a rugged. programmable. and easy-to-install electrical control system.

Features:

• 8 Button Switch Panel with 8 outputs
• RGB backlighting for customizable illumination
• Built-in Bluetooth module for wireless control via the free Switch-Pros App (iOS & Android)
• Battery voltage readout displayed in the app for real-time monitoring
• Orange LED switch indicators for clear visibility
• LED input status indicators on the power module for easy troubleshooting
• Preset dimming function with memory (adjustable from 100% to 10% brightness)
• Master mode allows control of up to seven switches with a single press
• On/Off or momentary function for versatile accessory control
• Ignition or battery input options for flexible wiring setups
• Flash or strobe mode with user-selectable strobe patterns and one-touch activation
• Automatic power-up when the vehicle starts
• Time delay off to control shutdown timing for accessories
• Low voltage disconnect to prevent battery drain
• Sleep mode for minimal power consumption when not in use
• Two external trigger inputs that can activate up to four outputs each (Active Hi or Active Low)
• Daisy chain capability to link up to three Switch-Pro switch panels to a single power module
• IP67 waterproof rating for durability in extreme conditions
• Compact. relay-free design for simplified installation
• Proudly made in the USA

Includes:

• Switch Panel and Power Module for complete accessory control
• RCR-Touch? 8 Cover for enhanced switch selection. even with gloves (U.S. Patent No. US D922.969 S)
• 11' communication cable between the switch panel and power module
• Power cable with 125A inline fuse for secure power distribution

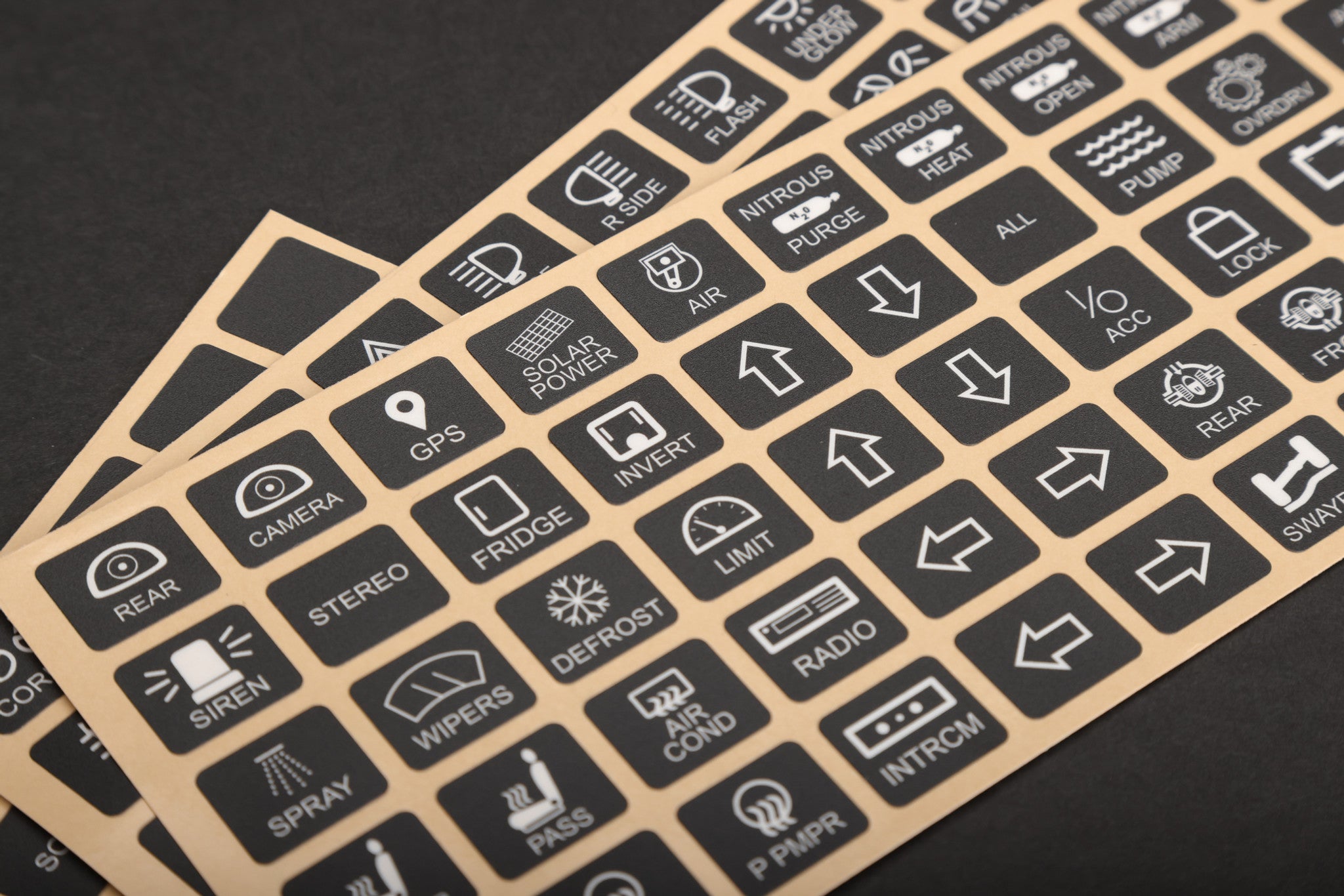

• 125 user-selectable legends (horizontal orientation) for customizable labeling
• Installation brackets and hardware for secure mounting
• 16-pin color-coded output harness for streamlined wiring
• Detailed installation guide for easy setup

Specifications:

• 125A total capacity with 8 configurable outputs
• Output ratings: 4 outputs @ 35A. 4 outputs @ 20A
• Adjustable overcurrent protection for each output
• Switch panel dimensions: 4 L x 2 W x .375 H
• Power module dimensions: 6 L x 3 W x .5 H (excluding connectors)
• Operating temperature: -40°C to 125°C

The Switch-Pros SP9100 is the go-to choice for off-roaders. racers. and professionals seeking a powerful. user-friendly switch system with advanced features and rugged reliability.

?
