Rugged Quick Lock? jack box with Firecom 5-Pin jacks and easy install daisy chain in and out connectors for adding two additional positions or pump panels.?

Choose from Three Models:

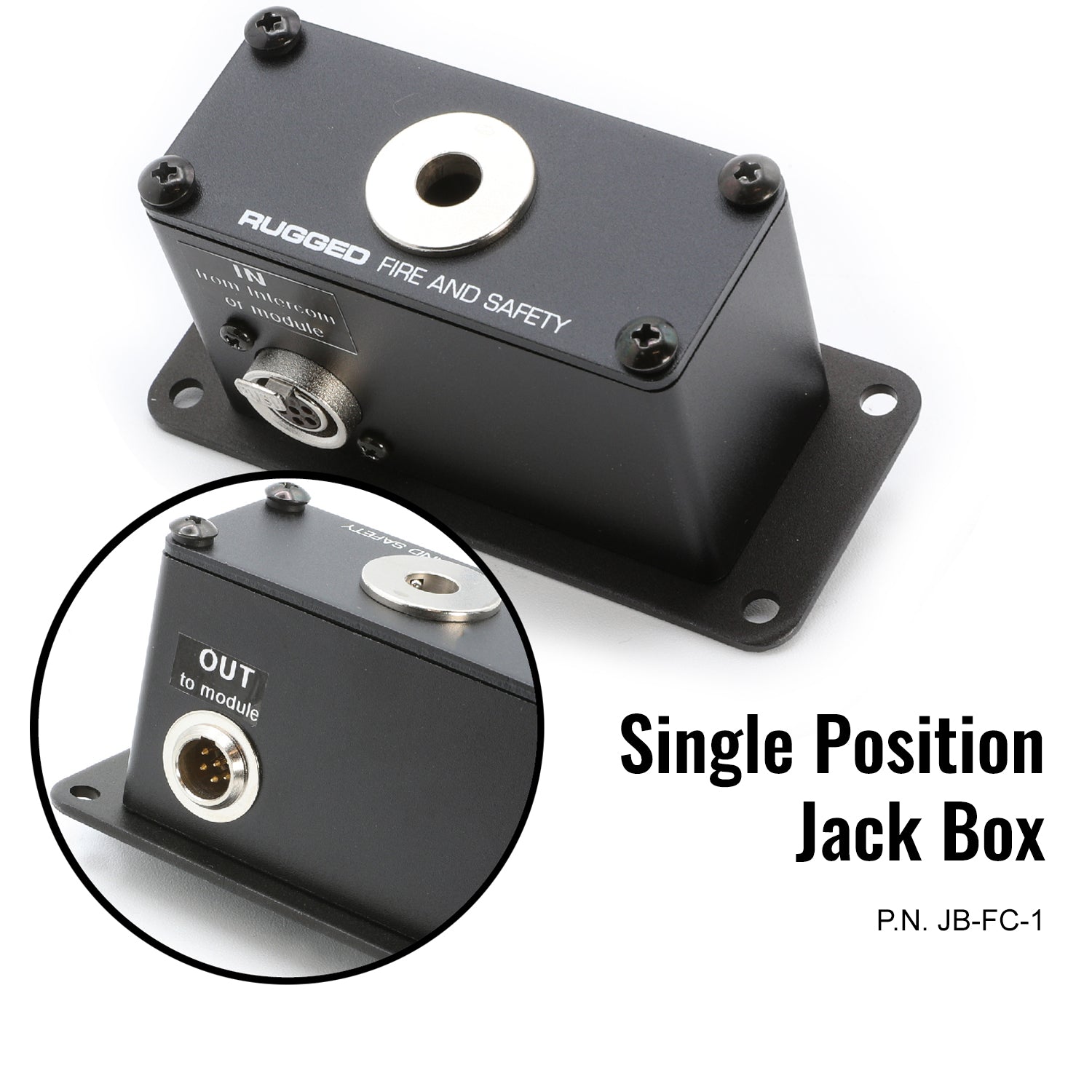

• Single Position Jack Box Headset Station

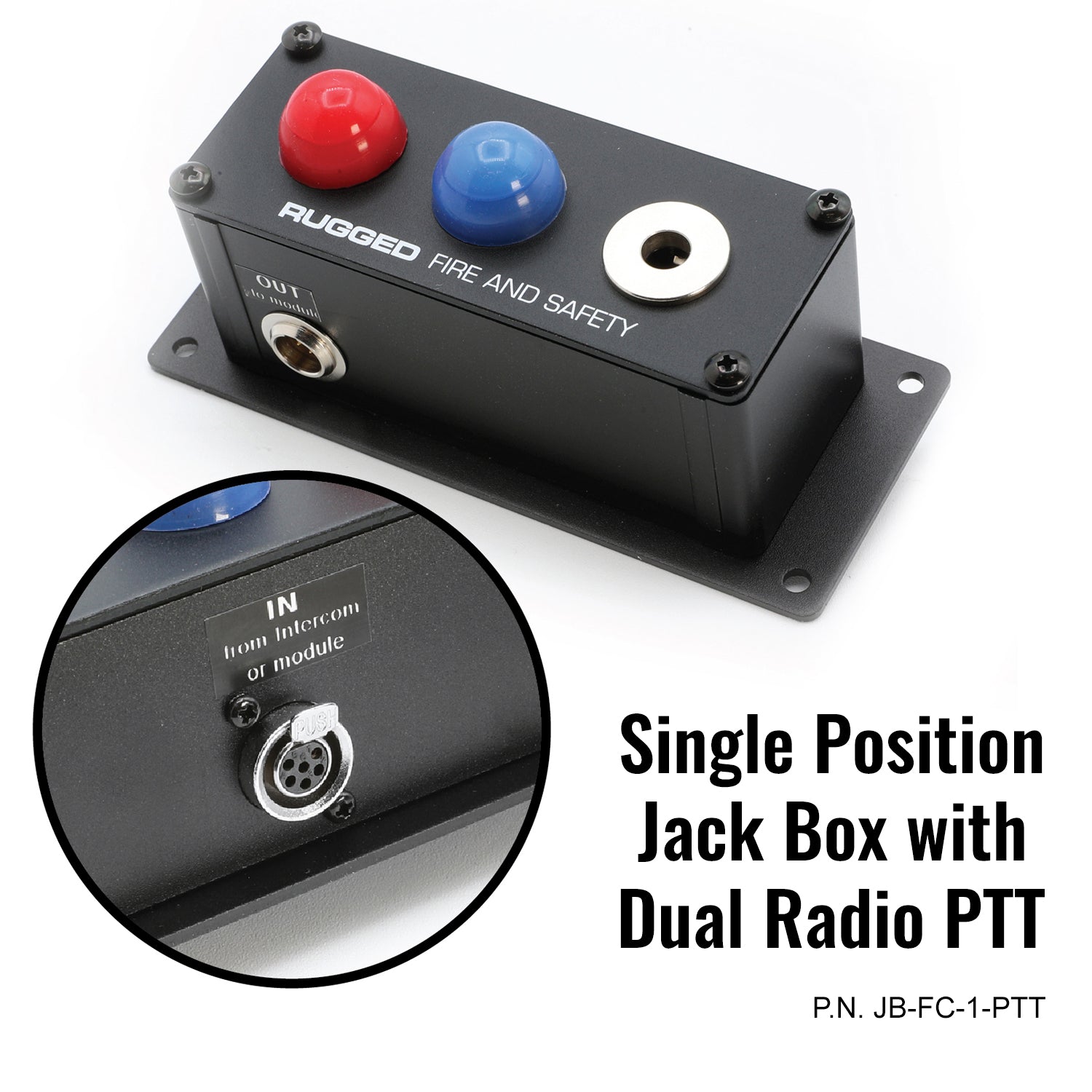

• Single Position Jack Box Headset Station with dual PTT

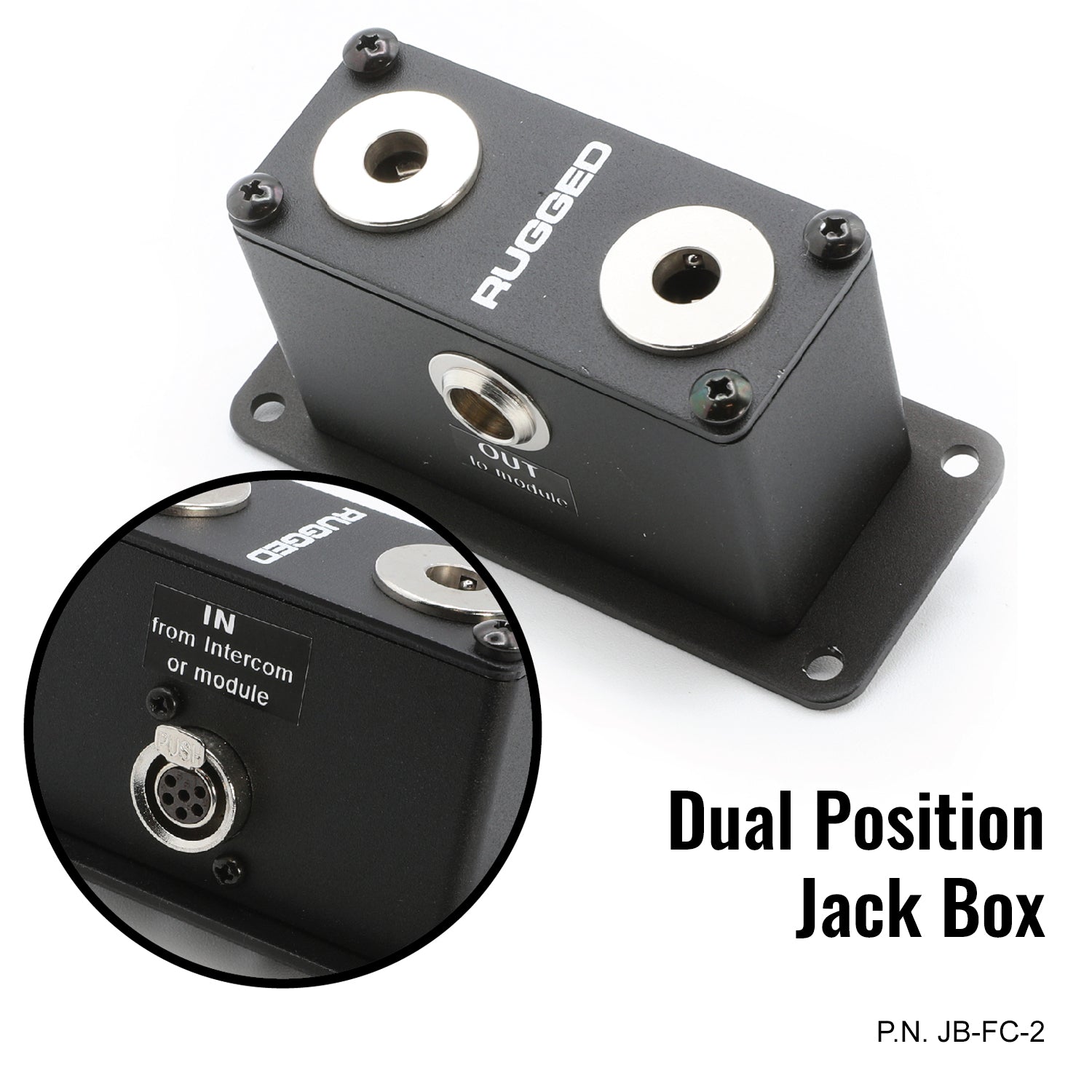

• Dual Position Jack Box Headset Station


Features:

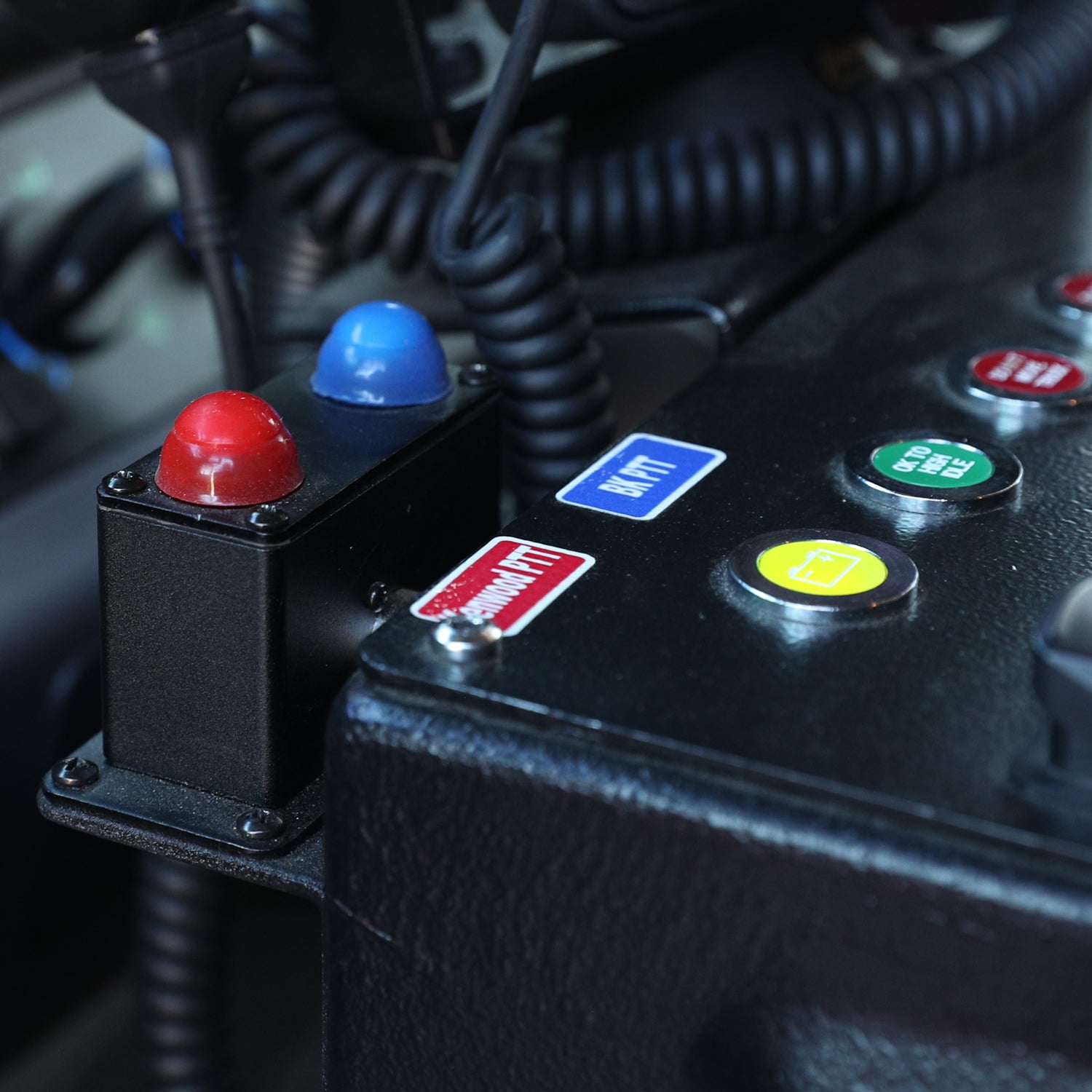

• Dual PTT Jack Box? provides PTT functions - one for each radio
• Extension jack box allows in-vehicle communication with listen-only radio function
• Nexus 5 conductor TJ105 jack for Firecom style headset plugs
• Quick Lock? locking connections
• Aluminum extrusion construction
• Built in panel mount design with self-tapping screws for easy installation
• Daisy chain using in/out 6-pin jacks
• Includes self-tapping mounting screws

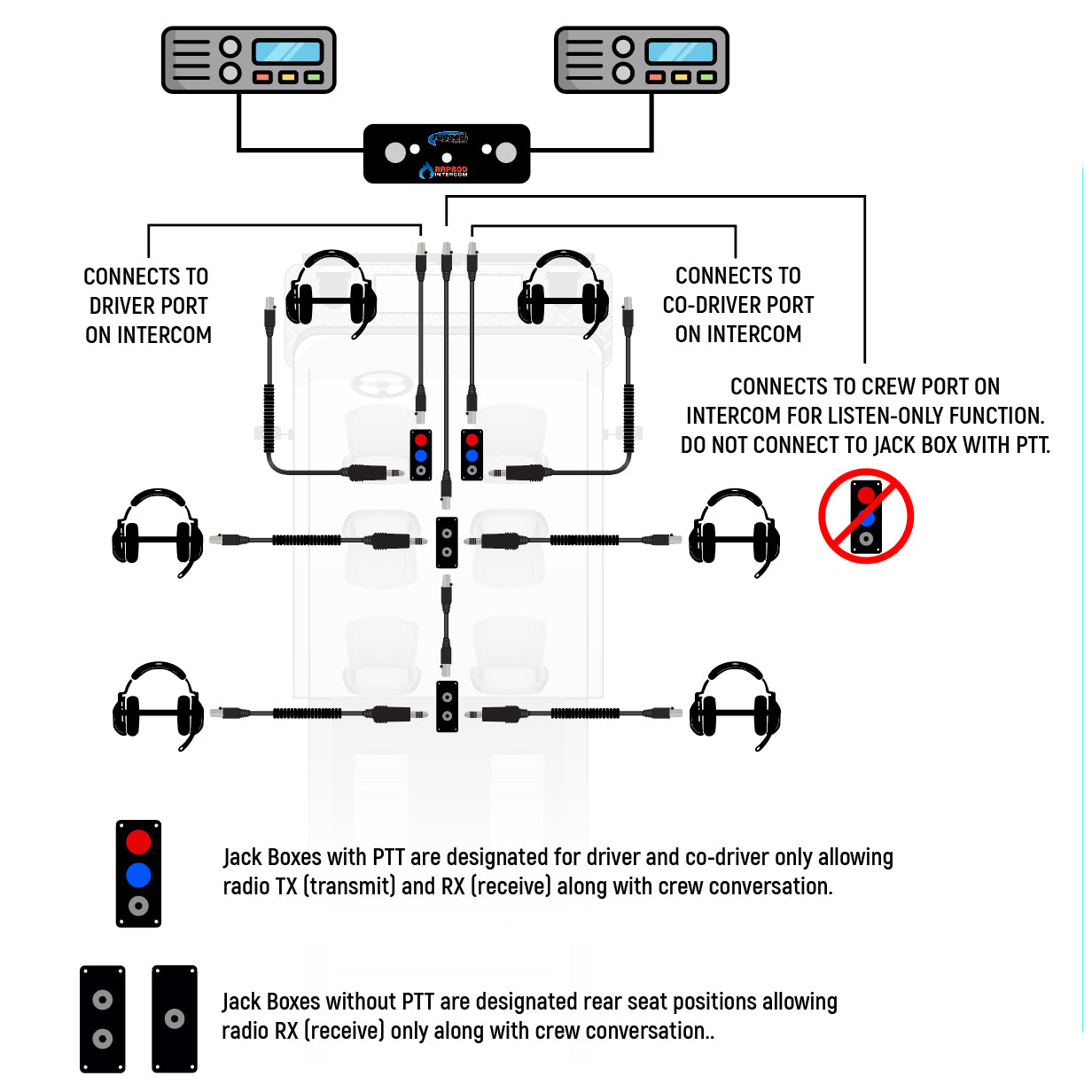

Configuration:

Jack Box with PTT
Headsets connect directly to the Jack Box and allows transmit. (download PDF)

Jack Box without PTT
These link to each other and the crew port on the intercom only. This provides listen-only capability for crew. Do not daisy chain to Jack Boxes with PTT. (download PDF)

SETUP IS FAST and EASY:

Rugged Quick Lock? jack boxes provide fast reliable installation that is easily configured and expanded from 2 positions to 6 positions and to pump panels. Rugged eliminates timely soldering and RF interference when using our 6. 10. or 15 ft.? Quick Lock? pre assembled cables.
