M8RIX? provides a streamlined solution that allows you to control up to eight different accessories on your vehicle. tractor or boat. from a dashboard-mounted touchscreen control panel.

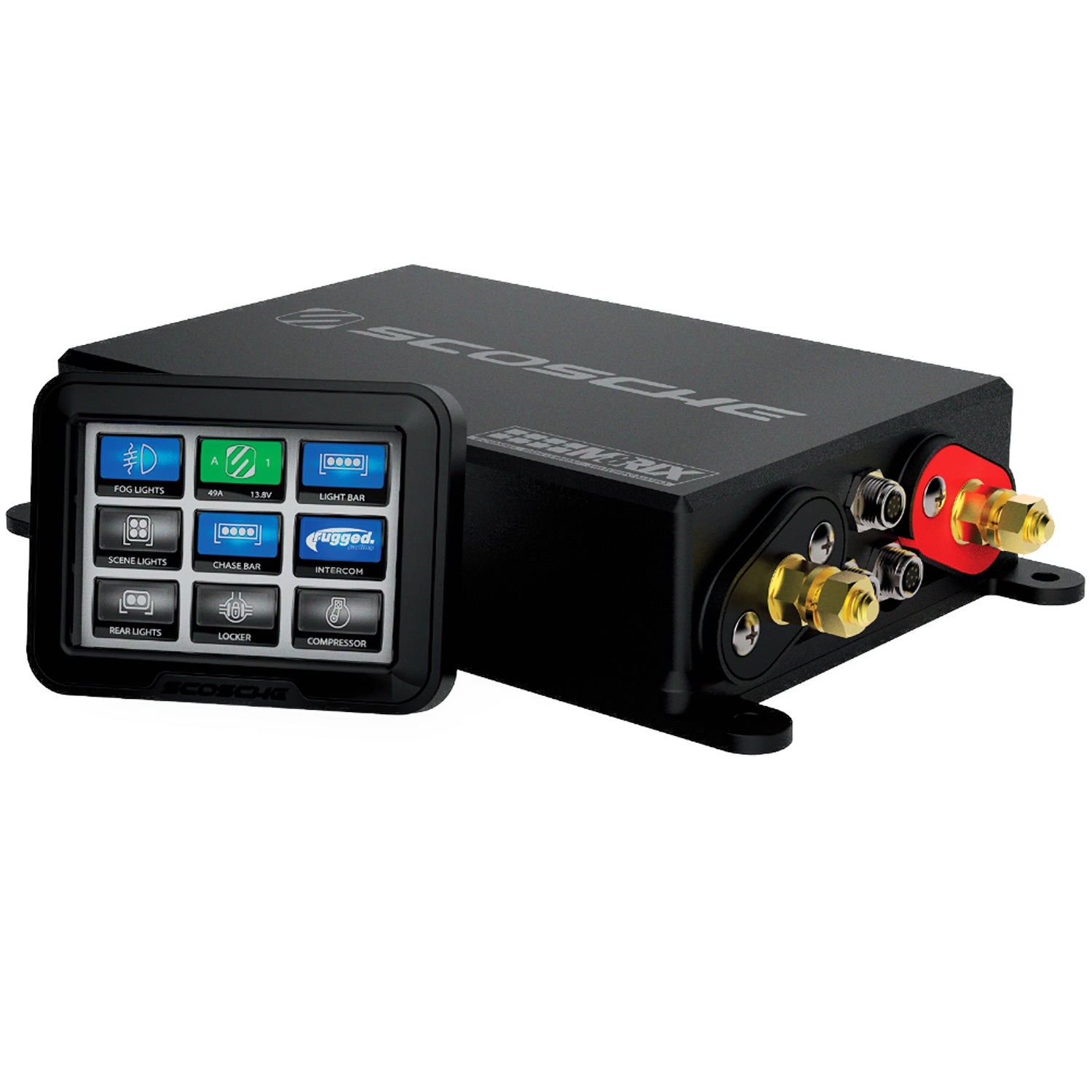

M8RIX? from Scosche provides a simple solution. delivering up to 130 amps from its IPX7-rated waterproof solid-state power module to (up to) eight different accessories. M8RIX makes wiring those accessories clean and simple. and you can even daisy-chain up to three units to control up to 24 channels.
The compact control interface is a customizable and splashproof touch screen that mounts easily to your dash. completely eliminating the need for multiple switches. You can program each channel for latched. momentary. strobe and timed output. and status indicators will alert you of any faulty channels. Install M8RIX and enjoy your vehicle or boat. with none of the headaches.
? 8 Programmable Channels

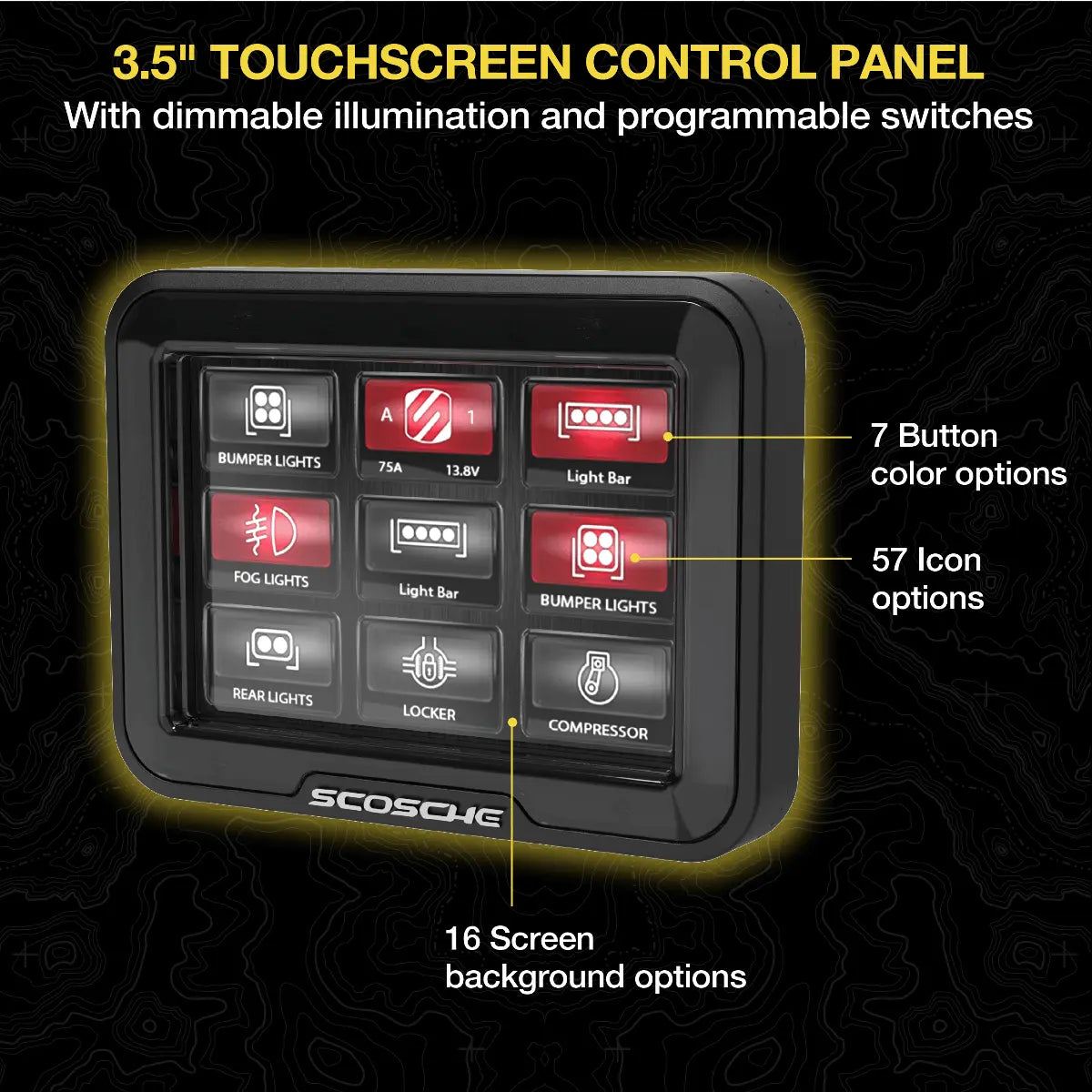

? 3.5 Touchscreen (3.82 L x 2.87 W x 1.18 H)
? 7 selectable on screen button colors (Red. Orange. Yellow. Green. Blue. Teal. Pink)
? 16 selectable screen backgrounds
? 57 selectable icon options
? 0-100 Lighting outputs can be dimmed from 100 to 0%
? Illumination input with dimming
? Programmable Timer - 1 Second - 24 Hour?

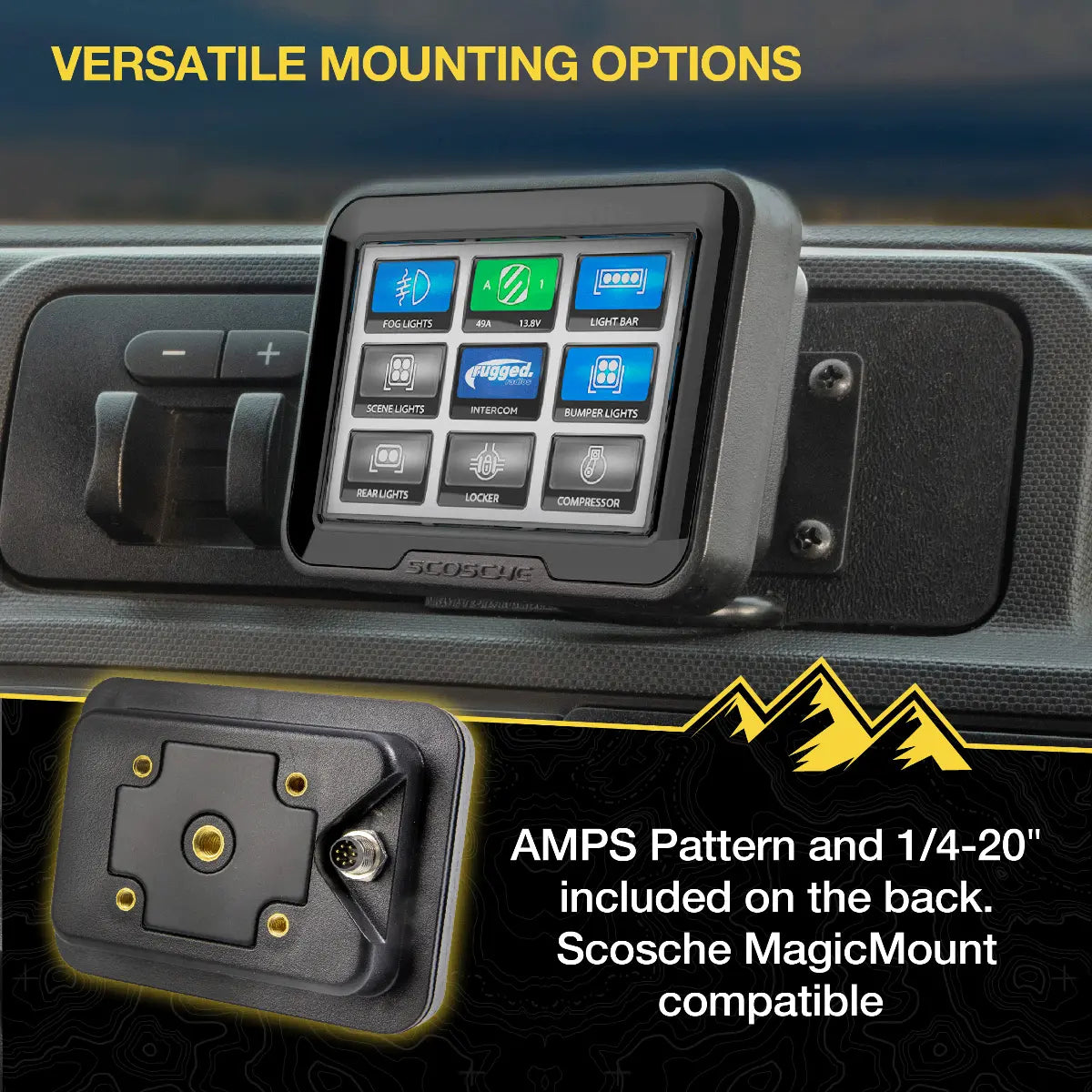

? Includes two mounting options
? Other mounting options available: AMPS pattern. ? – 20. Scosche MagicMount?. flush mount
? 8 Outputs: 2 rated at 30A each. 2 rated 15A each and 4 at 10A each
? Full Active - M8RIX will drive ALL channels full active at the same time
? MOSFET outputs
? 130A maximum rating

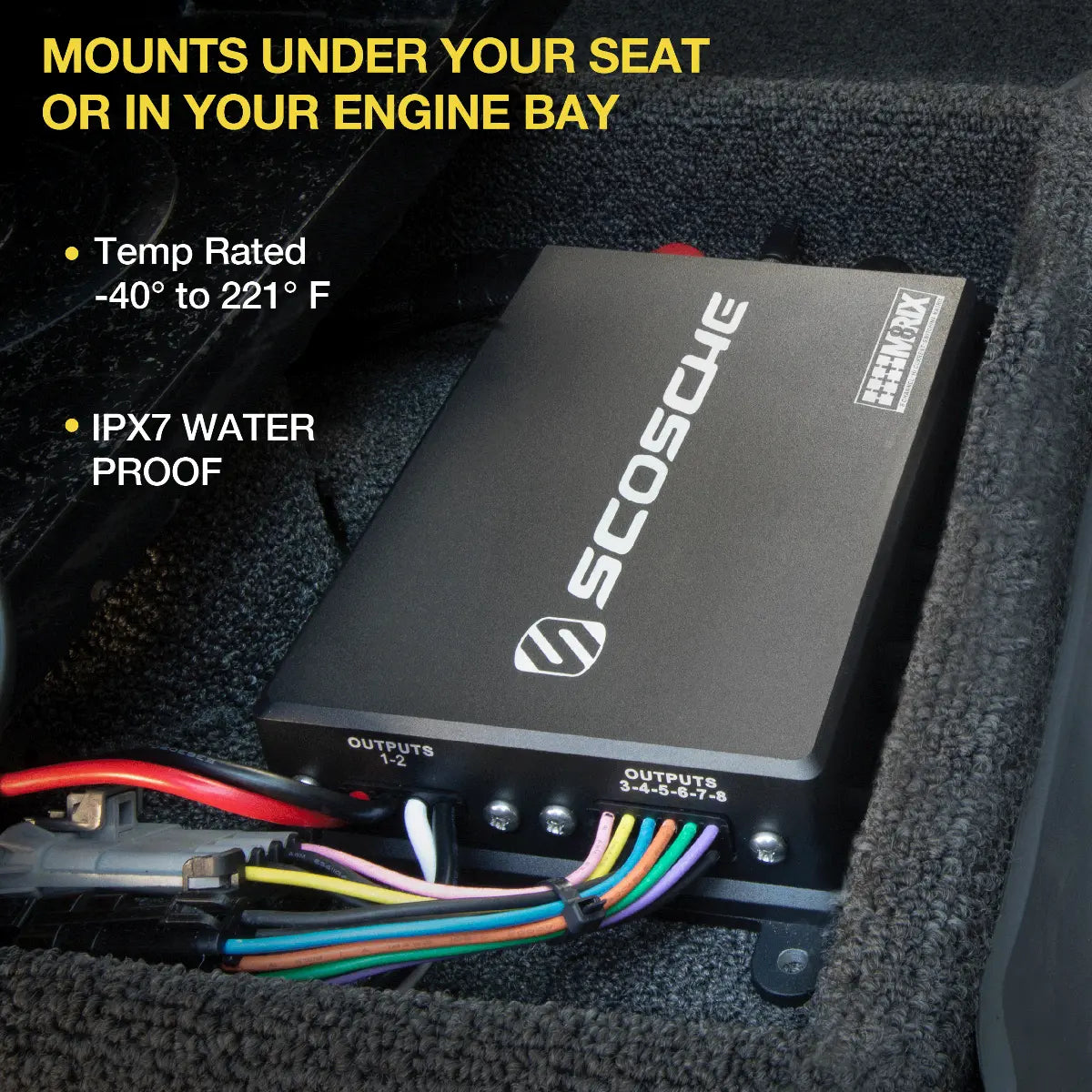

? Rated IPX7 – Waterproof. mount just about anywhere design

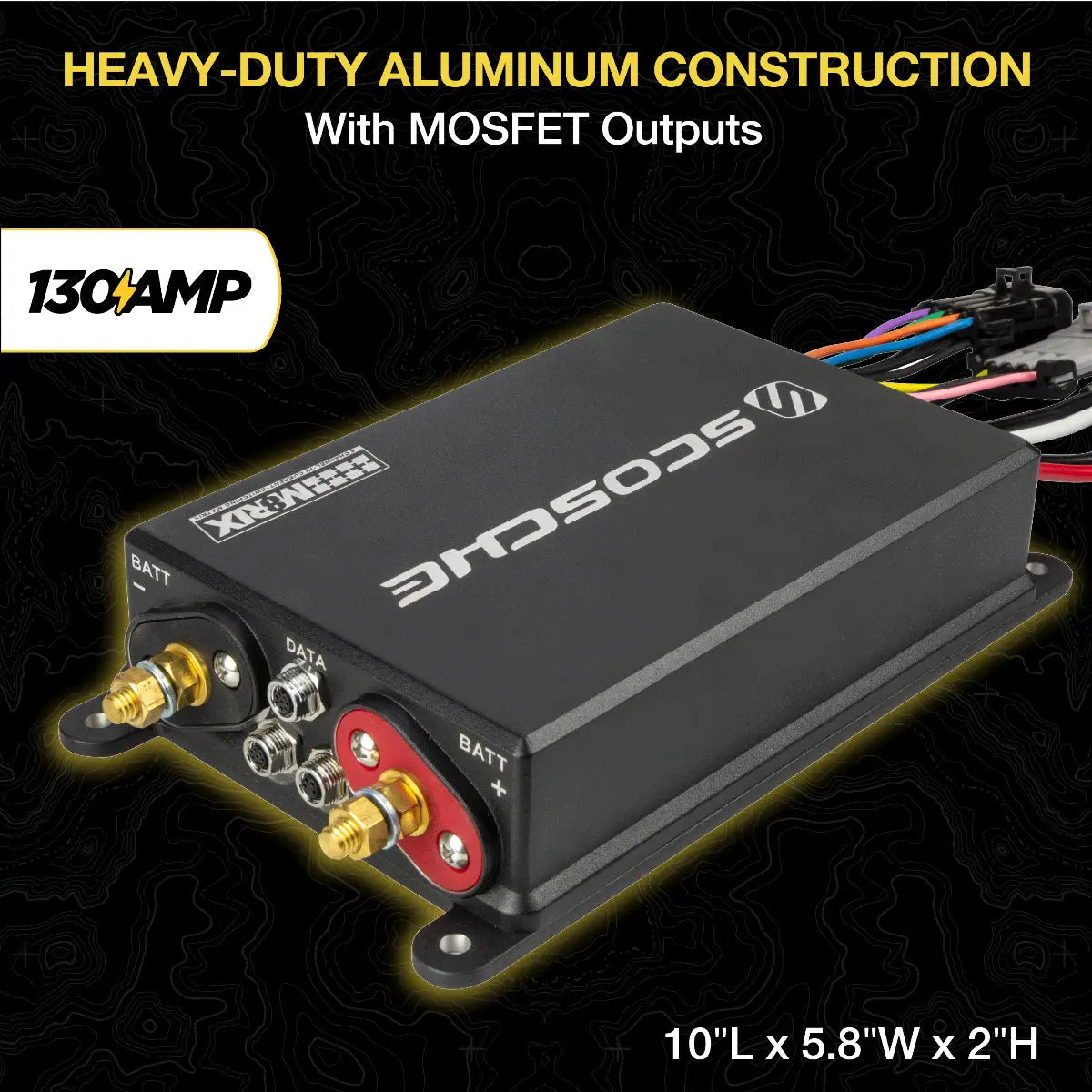

? Heavy-duty Aluminum construction
? Under hood rated for 105° to -40°C
? Dimensions 10 L x 5.8W x 2H (excluding connectors)

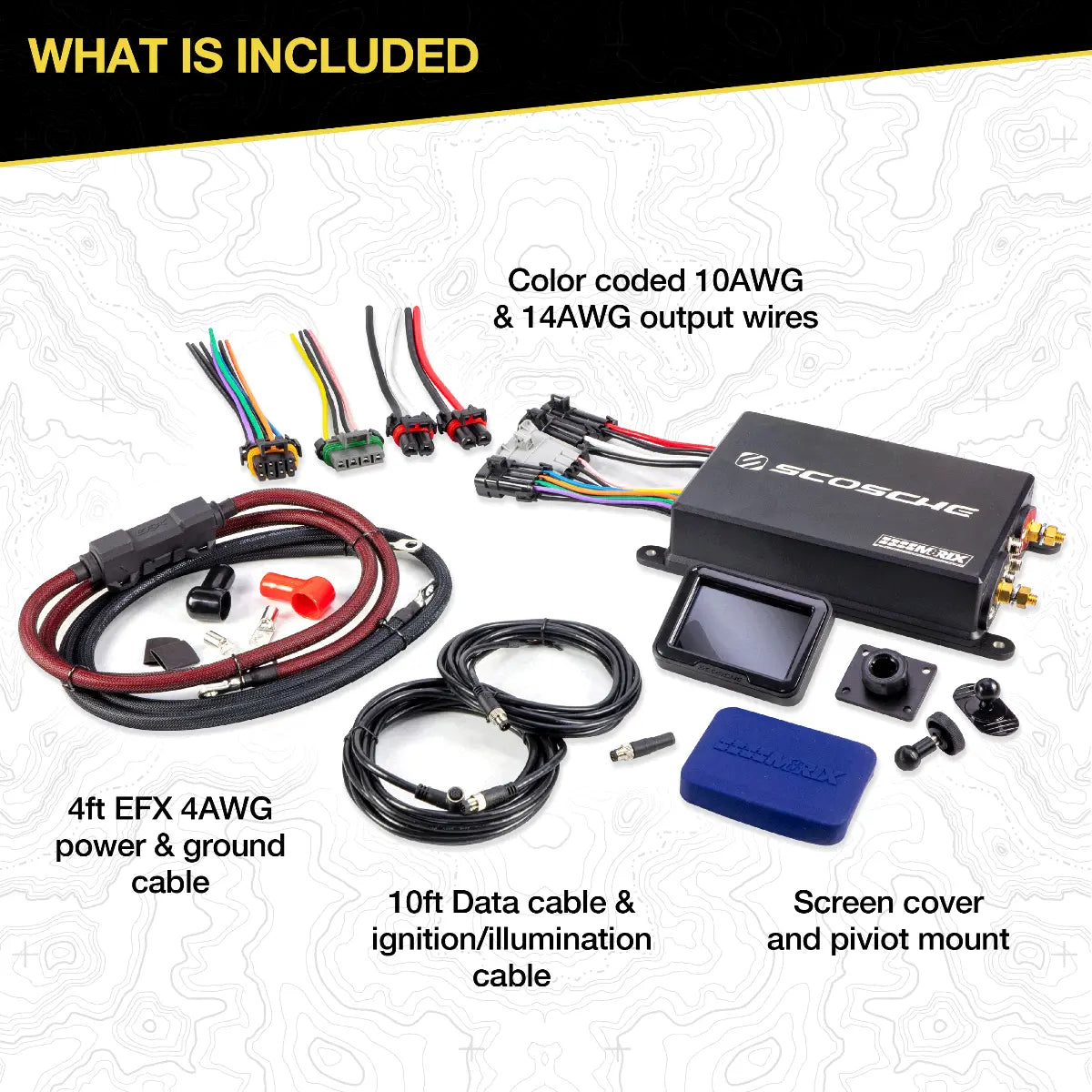

? 130A Power Distribution Module
? 3.5 Touchscreen (3.82 L x 2.87 W x 1.18 H)
? Power Cable - 4ft EFX high current 4 gauge OFC power cable with pre-attached weatherproof mini ANL fuse holder. ring terminals and nylon wire loom
? Ground Cable - 4ft EFX high current 4 gauge OFC ground cable with pre-attached ring terminals and nylon wire loom
? 10' Data cable between control panel and power module
? 10' Ignition and Illumination cable
? Color coded OFC 10 gauge and 14 gauge output wires
? Additional ring terminals and heat shrink for custom wire length applications
